Advantech

Advantech is a leader in providing trusted innovative embedded and automation products and solutions. Advantech offers comprehensive system integration, hardware, software, customer-centric design services, and global logistics support; all backed by industry-leading front and back office e-business solutions.

Advantech offers communications products and technologies building up reliable connection. These products include: Industrial Managed Ethernet Switches, ProView Series, and Unmanaged Ethernet Switches, Industrial Wireless AP/Client, Media Converters, Serial Device Servers, and Modbus Gateways. They also provide industrial Ethernet switches that are reliable, efficient, and cost-saving for industrial computer solutions.

advantech

Advantech Catalog

Download the latest Advantech catalog for all the specs and options available on their products. For assistance in selecting the correct product contact us today!

Intelligent HMI & Panel PCs

As a leading provider of human machine interfaces, Advantech’s HMI products are designed for a wide ranges of applications which can be applied in different industries. We provide an integrated and comprehensive range of HMI products including Intelligent Operator Panels (WebOP), Automation Panel PCs (TPC and PPC ), Stationary Panel Computers (SPC) and Industrial Monitors (FPM) for automation markets, near automation markets and domain focused markets such as oil and gas and sunlight readable requirements. In addition, we offer an integrated I/O and control features with HMI/SCADA software which allows efficient integration and opens a new era of automation.

Fanless Panel PCs

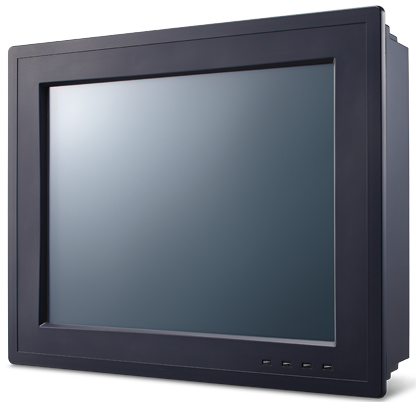

PPC-3100/ 3120

10.4”/ 12” Fanless Panel PC with Intel Atom D2550 Processor

  • TFT SVGA LED Panel with resistive touchscreen
  • Supports one internal SATA 2.5” HDD and 1 x mSATA socket
  • Adjust RS-232/ 422/ 485 through BIOS
  • COM1/COM2 pin9 RI/ 5V/ 12V adjustable through BIOS
  • LED backlight Auto dimming
Fanless Panel PC

Multi Function Panel PCs

PPC-6120

12” Panel PC with 4th Generation Intel Core i / Celeron Processor

  • System memory supports dual channel DDR3/DDR3L up to 16 GB
  • Supports 2 x Mini PCIe sockets, one is included mSATA function.
  • Optional one PCI/PCIe x1 expansion kit
  • Supports one isolated RS422/ RS485, 8 x TTL level programmable DIO, 1 x VGA and 1 x Display port
  • Dual GbE, supports Intel AMT8.0
  • LED backlight Auto dimming
Multi Function Panel PC

Washdown Ready Touch Screen Monitor

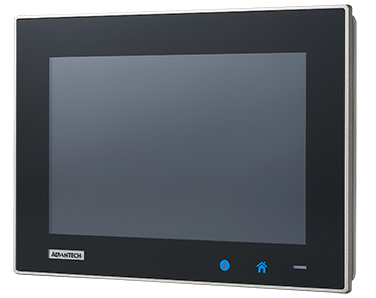

Advantech TPC-1051WP

The TPC-1051WP is a thin client terminal with a 10.1" WXGA LCD, low power embedded Intel Atom E3827 1.75 GHz Processor and 4GB DDR3L SDRAM provides adequate computing performance in a compact fanless system. The TPC-1051WP is a true-flat touch screen design with IP66 front protection, die-cast Aluminate Alloy front bezel and Projected capacitive touch.

  • Industrial 10.1 TFT LCD with 25K Lifetime LED Backlight
  • Intel Atom E3827 1.75 GHz Processor with 4GB DDR3L SDRAM
  • 16:9 Wide Screen with PCT Multi-Touch
  • IP66 Approved Front Protection & Panel Mounting
  • Built-in Intelligent Home key and i Key for an intuitive user interface
  • Front LED Indicator to Show Operating Status
  • Supports iDoor with optional accessory kit
  • Chassis Grounding Protection
  • Anti-scratch surface: 7H hardness
  • AC/DC support (option by Power adapter)
  • Supports Advantech SNMP Subagent
  • Supports Advantech SusiAccess Remote Device Management Software
Multi Function Panel PC

Industrial Communication

Advantech’s Industrial Communication products draw on over 20 years of experience to provide reliable wired and wireless communication (3G, GPRS, and WLAN) for mission critical applications. These products include: Industrial Ethernet Switches, Industrial Wireless AP/CPE, Media Converters, Serial Device Servers, Cellular IP Gateways, and Modbus Gateways. They are also capable of securely transmitting critical and sensitive information, remotely monitoring and controlling networked devices and emphasizing high communication capabilities for industrial applications.

Ethernet Managed Switches

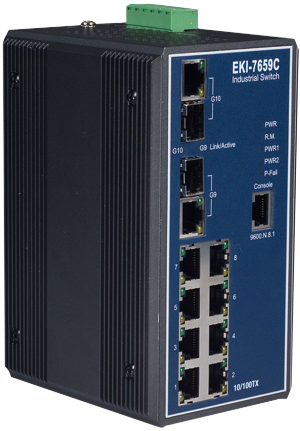

EKI-7659C

8+2G Combo Port Gigabit Managed Redundant Industrial Ethernet Switch

  • 8 Fast Ethernet ports, plus 2 Gigabit combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (recovery time less than 20ms)
  • Dual 12 ~ 48 VDC power input and 1 relay output
  • IPv6 support
Ethernet switch

Ethernet Un-managed Switches

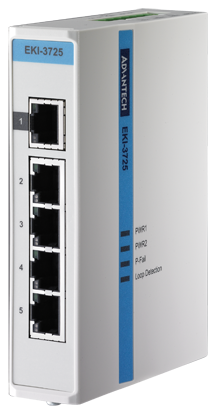

EKI-3728/ 3725/ 3528/ 3525

8-port/ 5-port Fast and Gigabit Unmanaged Industrial Ethernet Switch

  • Supports IEEE 802.3az, Energy Efficient Ethernet
  • Super compact IP40 protection
  • Support IEEE 802.1p QoS- VIP port setting
  • Supports redundant 12 ~ 48 VDC dual power input and P-Fail relay
  • In Loop detection
Ethernet Switch

Open Embedded Controller

As a leading industrial automation provider, Advantech is dedicated to providing fanless, industrial-proven and application ready control platforms. With a robust design, they include built in industrial I/O functions, isolated chassis grounds, multiple expansion solutions and multiple mounting methods. With its commitment to providing application-ready platforms, Advantech has introduced the Class I Division 2 certified UNO-1100H Series, which extends use to hazardous applications, such as oil and gas fields.

UNO-1000

  • Din-rail mountable
  • I/O & data storage capable
  • Safe to operate in hazardous locations (class 1, division 2)

UNO-2000

  • Wide range of CPU: AMD, Intel Atom, & Core I processors
  • Various mounting options
  • Fanless design

UNO-3000

  • Wallmount ready
  • Ideal for control cabinets
  • PCI expansion allows users to add 3rd party modules

Din-Rail Embedded Controller

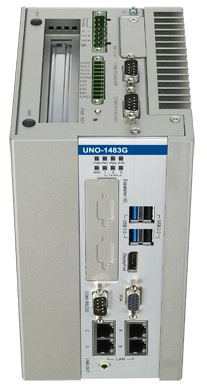

UNO-1483G

Intel 4th Gen Core i3 DIN-Rail controller with DIO, iDoor, PCIe, 4GbE

  • Dual Power Inputs reducing down time
  • 4 x GbE support IEEE 1588, 2 x USB 3.0 super-speed ports
  • 4 x DI, 4 x DO, 1 x RS-232, 2 x RS-422/ 485
  • DP + VGA dual display outputs
  • 2 x mPCIe, 1 x PCIex1, 1 x mSATA, 1 x SATA
controller

Compact Embedded Controller

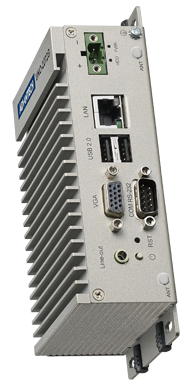

UNO-2272G

Intel Atom E3825 Automation Controller with HDMI, 3 x USB, 1 x GbE and 2 x Mini PCIe

  • Intel Atom E3825 1.33GHz Processor
  • 1 x RS-232, 1 x GBE, 1 x HDMI and 3 x USB (1x USB 3.0), 1 x mSATA
  • 2 x MiniPCIe with SIM card support for WLAN/ 3G solution
  • iDoor technology suppport
controller

Daisy-chain Ethernet I/O Module

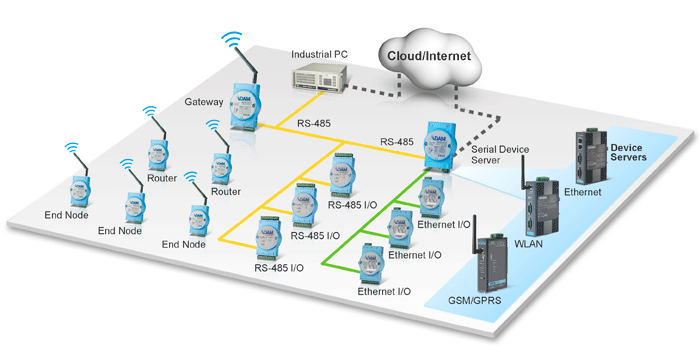

While the “Internet of Things” is rapidly becoming a reality, customers can take advantage of Advantech’s machine-to-machine I/O modules: ADAM-2000 series, RS-485 based ADAM-4000 & ADAM-4100 series and Ethernet-based ADAM-6000 & ADAM-6200 to monitor and manage field sites easily because the field site status can be identified, tracked, and eventually altered remotely. Remote data acquisition can build up a reliable and stable network for a variety of applications, such as industrial automation, environmental and facility management, and intelligent transportation system.

ADAM Module

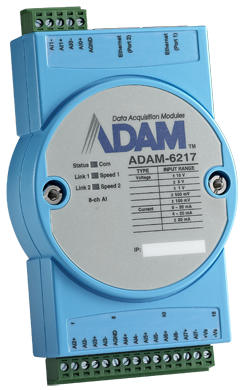

ADAM-6217

8-ch Isolated Analog Input Modbus TCP Module

  • Daisy chain connection with auto-bypass protection
  • Auto-calibration without providing any input
  • Web language support: HTML 5, Java Script, XML
  • Supports GCL and Peer-to-Peer
  • Group configuration capability for multiple module setup
ADAM Module

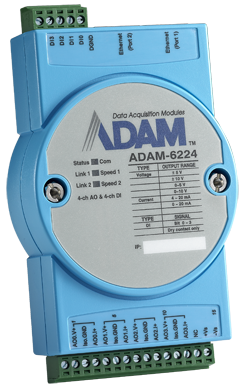

ADAM-6224

4-ch Isolated Analog Output Modbus TCP Module

  • Daisy chain connection with auto-bypass protection
  • DI trigger and output preset AO value
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Web language support: HTML 5, Java Script, XML
ADAM Module

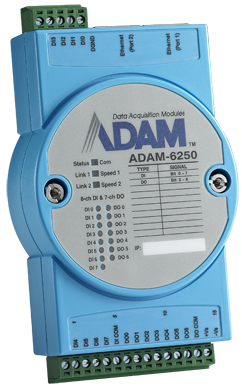

ADAM-6250

15-ch Isolated Digital I/O Modbus TCP Module

  • Daisy chain connection with auto-bypass protection
  • DO fail safe value
  • Web language support: HTML 5, Java Script, XML
  • Group configuration capability for multiple module setup
