Precision Positioners

ONExia provides various positioning systems and components. These products can be utilized in a range of processes including manufacturing, transferring and testing. Our expertly trained engineers will help you to decide which solution is perfect for your unique needs.

Actuators

HLD Actuator

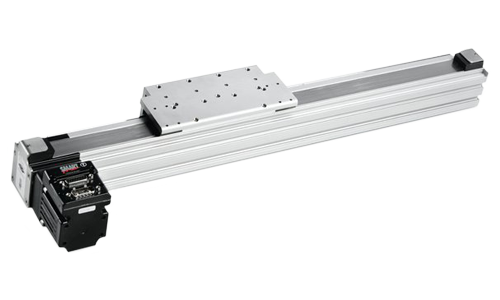

Animatics HLD Actuators

  • No Gear Box
  • No Motor Adapter
  • Nearly Zero Backlash (30µm Bi-directional Repeatability)
  • No brake required. Perfect for vertical gravity load or constant load applications
  • Built-in Fully Programmable Motion Controller and Amplifier
  • No Control Cabinet Required
hmr

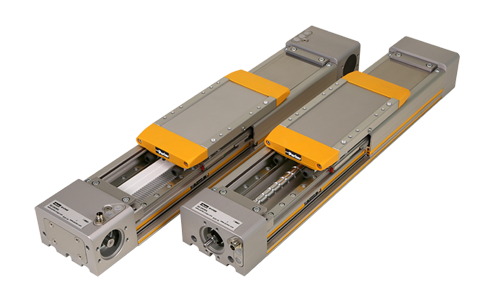

Parker HMR Actuator

  • 5 profile sizes- 085, 110, 150, 180 and 240mm
  • Dual drive train- Precision Ground Ball Screw or High Efficiency Timing Belt
  • Load capacity up to 26,600 N
  • Max thrust to 5,560N (Screw) and 4,000N (Belt)
  • Standard strokes up to 4000mm (Screw) and 6000mm (Belt)
  • Max speed to 1.6 m/s (Screw) and 5 m/s (belt)
xe series

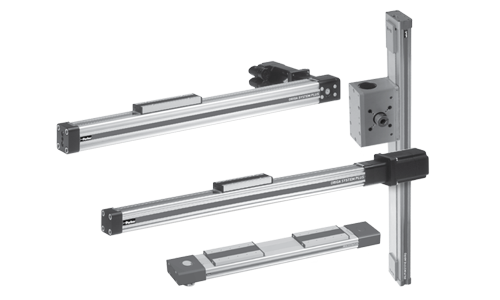

OSP-E Actuators

  • Simple pneumatic to electromechanical conversion
  • Stepper or servo motor compatibility
  • Ball or trapezoidal lead screw-drive options
  • High-thrust-force designs
xe series

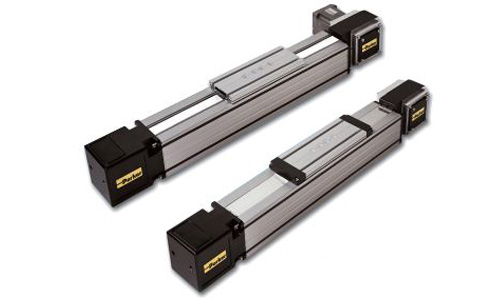

HPLA Actuators

  • Standard travel up to 8 meters (longer available)
  • Four cross sectional sizes - 60,80,100, or 150mm
  • Load capacities up to 600 Kg
  • +/- 0.2 mm positional repeatability
xe series

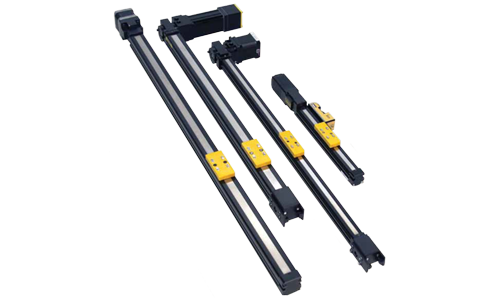

LCR Actuators

  • Belt drive or lead screw drive versions
  • 22 and 30 frame sizes
  • Stepper or servo motor options
  • Integrated drive option

Precision Posisitoners

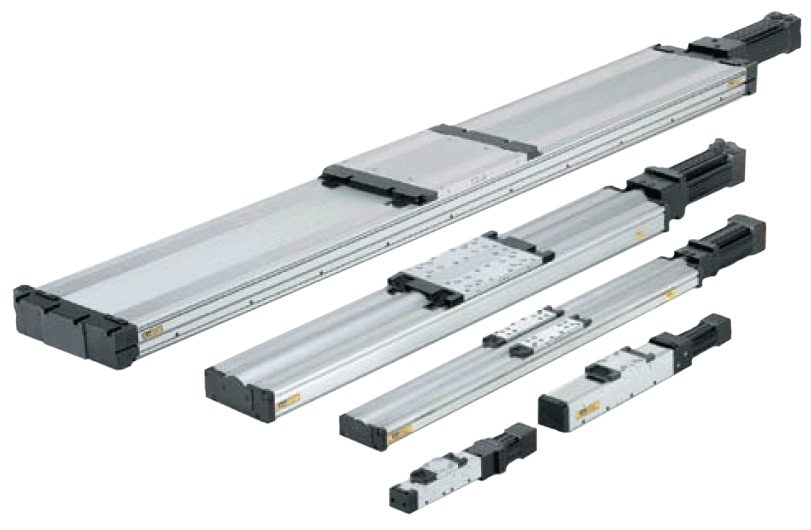

404XR -412XR Standard Series

The “400XR” standard series linear positioners offer reliable performance and unmatched versatility. Premier performance, modular compatibility, and quick delivery have made these tables the perfect building blocks for cost-effective multi-axis systems.

  • 24/7 operation at 100% duty
  • Dowel holes for repeatable mounting
  • IP30 rated protective strip seals
  • Travels up to 2 meters
  • Optional single point lube for easy maintence
400xr
400xr
xe series

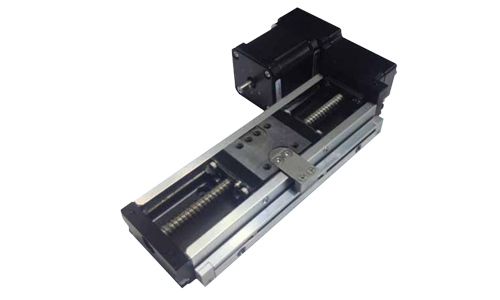

Parker XE Series

  • Integrated bearing and carriage assembly
  • Rigid U-channel, steel body
  • High force per dollar value
  • Easily adapted into multi-axis configuration
  • Small package size as compared to actuators with separate bearing arrangements
parker square rail

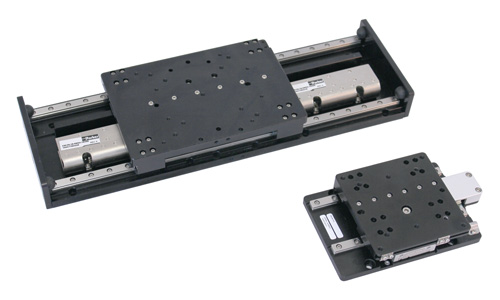

Parker Square Rail

  • Two form factors (mSR 80 - 80 mm wide x 25 mm tall, and mSR 100 - 100 mm wide x 25 mm tall)
  • Standard strokes ranging from 25 mm to 500 mm
  • Two center driven linear motor technologies (mSR 80 - ironcore, mSR 100 - ironless)
mpr series

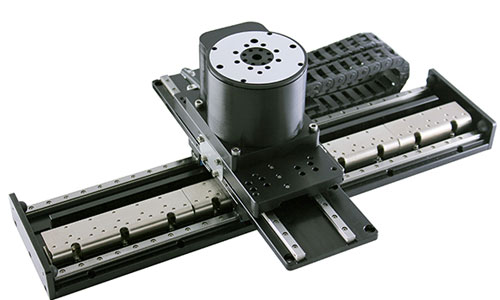

Parker mPR

  • Two form factors (mPR 80 - 80 mm wide x 75 mm tall, and mPR 100 - 104 mm wide x 90 mm tall)
  • Continuous 360 degree operation
  • An integrated direct drive servo motor
  • Four different encoder options (3- optical incremental, 1 - analog sine/cosine)
mpr series

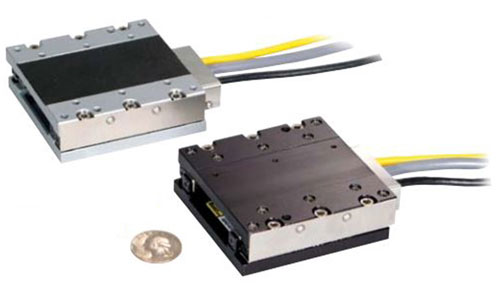

Parker MX Series

  • Low-profile miniature size
  • Cleanroom environment option
  • Up to 150 mm travels
  • Multi-axis platform
  • Ballscrew or leadscrew drive options
  • Up to 123 N axial thrust
  • 2g acceleration

Electric Cylinders

ETH series

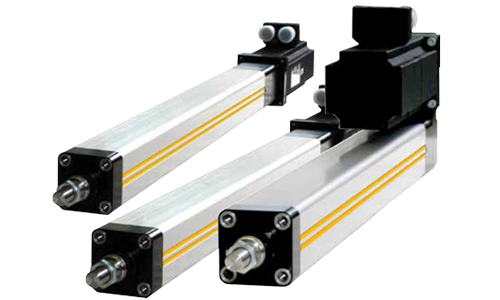

Parker ETH Series

  • 5 frame sizes (ISO 32, 50, 80, 100 and 125)
  • Oversized ball screw and thrust bearings
  • Max thrust- 114,000 N
  • Max speed- 1.7 ms
  • Max stroke- 2 m
  • Duty Cycle- 100 percent
ETH series

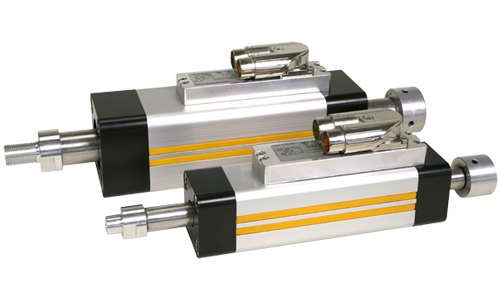

Parker EET Series

  • ISO 15552:2005-12 mounting footprint
  • Continuous thrust- 8 to 118 N
  • Peak thrust- 32 to 474 N
  • Max speed- 4 m/s
  • Max Accel- 200 m/s2
  • IP67 rated
ETH series

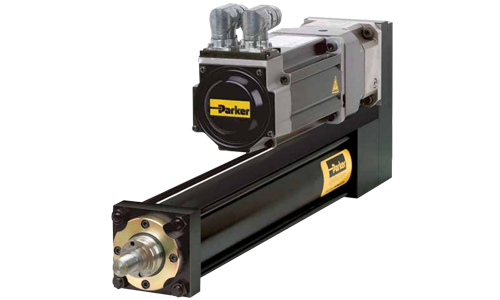

Parker XFC Series

  • Frame Size- 75, 90, 115, 140, 165, 190
  • Roller screw technology
  • Max Thrust- 356 kN
  • Max Speed- 1 m/s
  • Anti-rotate rod option
  • All steel construction

Encoders

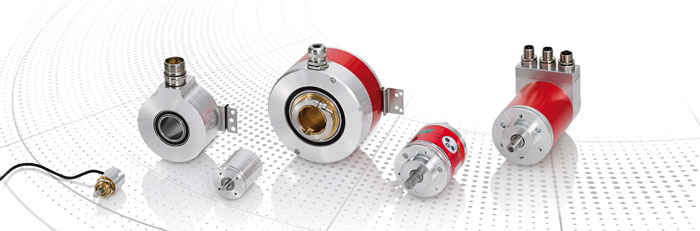

Rotary Encoders

TR-Electronic rotary encoders with optical or magnetic scanning precisely acquire position in steel production, wind power plants, cranes and ships as well as in explosion-proof versions in painting lines. Miniature versions ensure the correct position in medical technology and SIL3 approved absolute rotary encoders ensure the necessary safety.

encoders

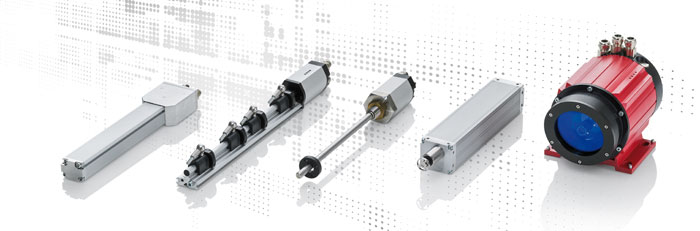

Linear Encoders

Linear absolute position measuring systems and position sensors (magnetostriction) measure linear movements e.g. in injection molding machines without contact and wear-free, or are integrated directly into hydraulic cylinders. Cascadable position sensors position parting units. High-resolution absolute position measuring systems with a glass scale ensure precise positioning on machine tools.

encoders
