OMRON Safety
Omron helps America's largest and most demanding industries maximize efficiency and optimize production in their manufacturing processes.
Emergency Stop Devices
![E-Stop Device](img/Safety/A22E_tcm849-100899.jpg)

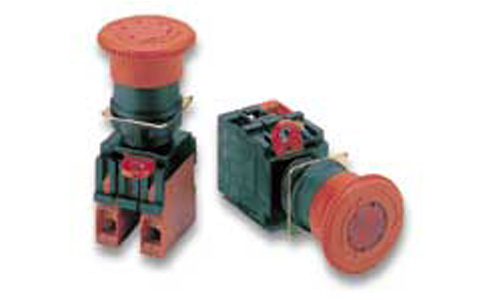

A22E E-Stop Button
Versatile E-stop button is ideal for a variety of applications.
- Install in 22 or 25 mm diameter panel cutout.
- Safety lock mechanism prevents operating errors.
- Easy mounting and removal of Switch Blocks using a lever.
- Mount three Switch Units in series to improve wiring efficiency.
- Finger protection mechanism on Switch Unit provided as a standard feature.
- Install using either round, or forked crimp terminals.
- P65
![E-Stop Device](img/Safety/ER5018_copy_tcm849-101581.jpg)

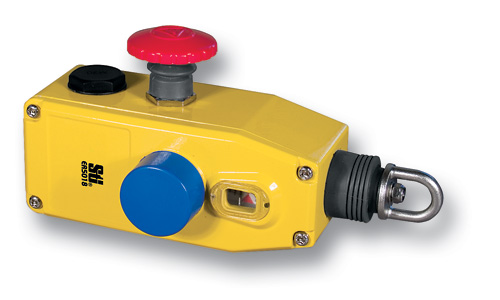

ER5018 Rope Pull
The ER5018 line-up offers basic functionality in rope pull application with a maximum rope span of up to 40m. Rope kits and a full range of accessories are provided for easy setup.
- Compact size allows this switch to be used on smaller machines with a mounting width of 40 mm (1.57 in.)
- Contact arrangements of 2 N/C + 1 N/O or 3 N/C
- IP67 (NEMA 6) enclosure to withstand water washdown cleaning
- Heavy-duty die-cast housing
- Integral E-Stop
- Reset button
![E-Stop Device](img/Safety/ER6022_rope_pull_long_neck_copy_tcm849-100923.jpg)

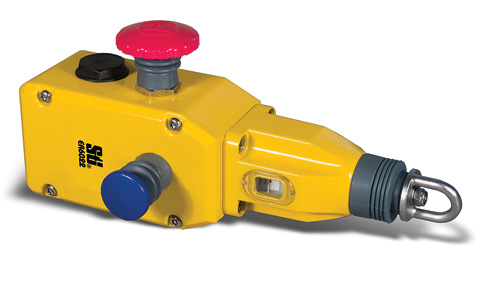

ER6022 Rope Pull
Ideal for rope spans up to 80 m 262 ft.
- Rope spans up to 80 m (262 ft.) means fewer number of switches required per application
- Contact arrangements of 2 N/C + 1 N/O, 3 N/C + 1 N/O or 2 N/C + 2 N/O
- IP67 (NEMA 6) enclosure to withstand water washdown cleaning
- Reset button
- Indicator beacon in 24 VDC or 120 VAC
Light Curtains
![E-Stop Device](img/Safety/F3SG-RA_photo_RGBweb_tcm849-102124.jpg)

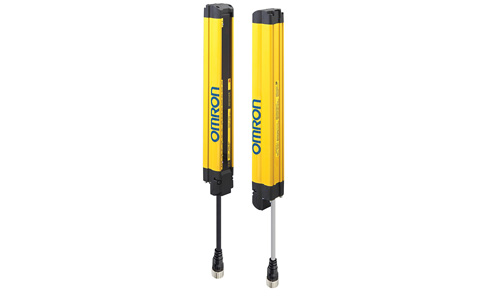

F3SG-RA
Advanced Safety Light Curtain in Rugged IP67 Housing.
![E-Stop Device](img/Safety/F3SG-RA_photo_RGBweb_tcm849-102124.jpg)
F3SG-RE
Easy type for simple ON/OFF detection applications.

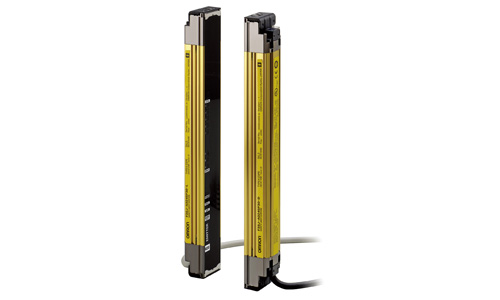

![E-Stop Device](img/Safety/F3SJ_tcm849-102178.jpg)
F3SJ-A
Advanced type for complex safety solutions.
![E-Stop Device](img/Safety/F3SJ_tcm849-102178.jpg)
F3SJ-B
Basic type with a combination of performance and functionality.
![E-Stop Device](img/Safety/F3SJ_tcm849-102178.jpg)
F3SJ-E
Easy type for simple and affordable hand protection.
![E-Stop Device](img/Safety/F3SJ_tcm849-102178.jpg)
MS4800 / MSF4800
Rugged and robust all purpose two-box design Safety Light Curtain - no separate control box or cables between transmitter & receiver.
Safety Scanners & Sensors
![Laser Scanner](img/Safety/OS32C_tcm849-101117.jpg)

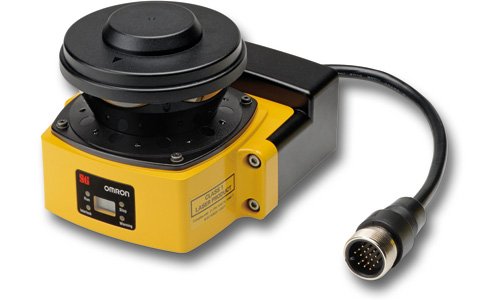

OS32C Safety Laser Scanner
Safety laser scanner OS32C covers all these requirements in collision avoidance, presence and intrusion detection applications. Maintenance is made simple since diagnosis is clear having LED displays.
- Type 3 Safety Laser Scanner complies with IEC61496-1/-3
- 70 sets of safety zone and warning zone combinations
- Safety zone up to 4m and warning zone(s) up to 15m.
- 8 Individual Sector indicators and various LED for clear status indication
- Reference boundary function prevents unauthorized change of scanner position

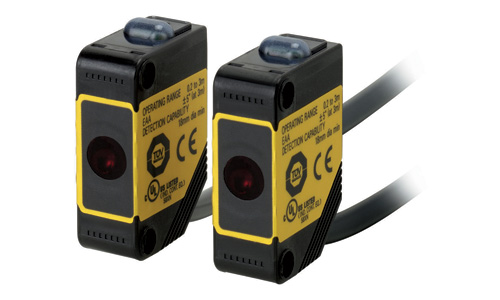

![Laser Scanner](img/Safety/E3ZS_grp_tcm849-102279.jpg)
E3ZS Single Beam Safety Sensor
The compact rectangular sized E3ZS is a category-2 safety single beam sensor with an operating range of up to 3 m.
- Through-beam sensor designed for hazardous machine gaps
- PBT block style E3ZS: 0.2 to 3 m
- Use with F3SX Safety Controllers
![Laser Scanner](img/Safety/PA4600_tcm849-103052.jpg)

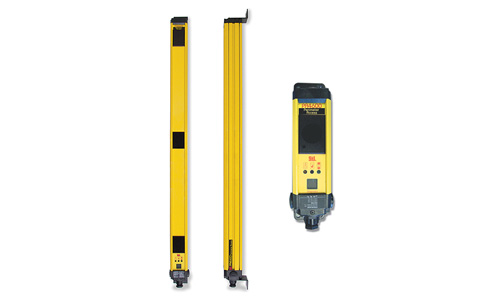

PA4600 Perimeter Access Guarding
Long range, multi-beam presence sensing device for guarding robot centers and large machines. Ideally suited to detect the torsos of personnel entering a hazardous area.
- 1 to 6 beams available
- Protective Heights from 231 mm to 1731 mm (9.12 to 68.17 in.)
- Operating range of 70 m (229 ft.)
- Compact size — 46 x 55 mm (1.81 x 2.17 in.)
- Simple “two-box” design — no separate control box required
- Individual Beam Indicators
- LED status indicators and numeric displays
- Explosion Proof enclosure available
Safety Mats, Edges, Bumpers
![Safety Mat](img/Safety/UMQ_safety_mat_tcm849-101994.jpg)

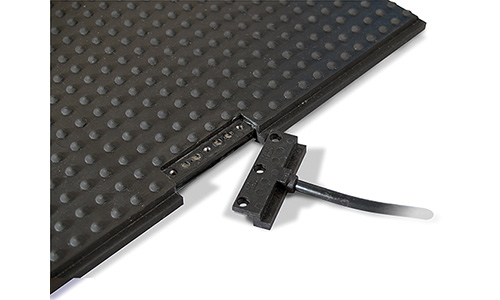

Safety Mats
Heavy-Duty Four-Wire Presence Sensing Mats with Removable Cable, Category 3 Controllers and Perimeter Trim.
![Safety Edge](img/Safety/SGE_SCS_tcm849-101981.jpg)

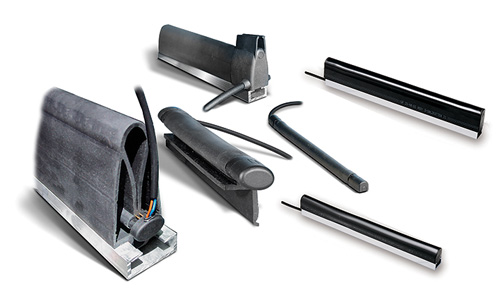

Safety Edges
Flexible strips to afix to the edge of moving parts.
![Safety Edge](img/Safety/SGE_SCS_tcm849-101981.jpg)
Safety Bumpers
Safety bumpers in lengths up to 3000 mm.
![Safety Edge](img/Safety/SCC_tcm849-103034.jpg)

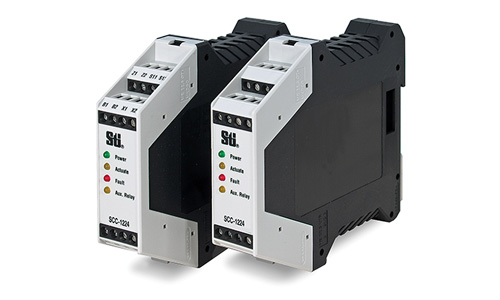

Safety Edge Controllers
Single Channel Safety Edge Controllers for use with all safety edges and safety bumpers.
![Safety Edge](img/Safety/MC_Combo_tcm849-101989.jpg)

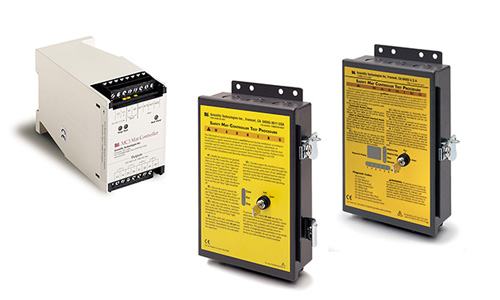

Safety Mat Controllers
The MC Series controllers, when combined with a four-wire UM or UMQ series mat, provide access guarding and improved productivity.
Programmable Safety Systems
![Programmable Safety Device](img/Safety/G9SP_cover_tcm849-101078.jpg)

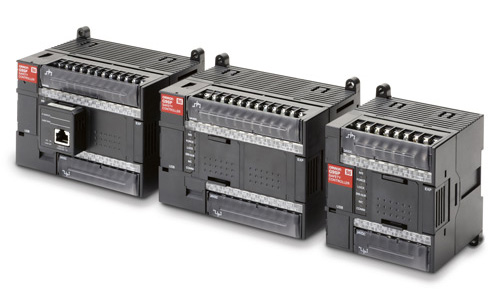

G9SP Safety Controller
The G9SP is a Stand-alone safety controller for small and mid-sized machinery, in addition to safety inputs and outputs four types of expansion I/O Units for hard-wired diagnosis or standard non-safety signals.
- Three CPU-types to suit different applications
- Clear diagnosis and monitoring via Ethernet (Omron FINS protocol), EtherNet/IP, or Serial (RS-232) connection
- Supports direct connection with non-contact switches and safety mats
- Memory cassette for easy duplication of configuration
- Unique programming software to support easy design, verification, standardization and reusage of the program
- Certified according to PLe (EN ISO 13849-1) and SIL 3 (IEC 61508)
![Programmable Safety Device](img/Safety/NE1A_tcm849-101611.jpg)

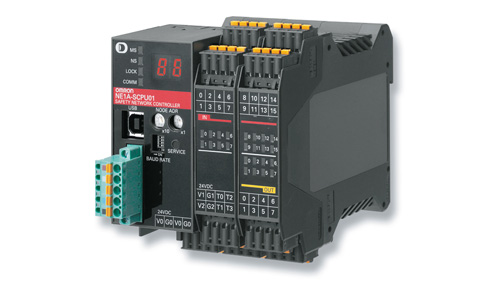

NE1A Safety network controller
The NE1A hosts the safety application program. All local and DeviceNet safety-based inputs and outputs are monitored and controlled by the NE1A. It manages up to 32 DeviceNet safety connections and can be seamlessly integrated in a standard DeviceNet system.
- Removable cage-clamp terminals for easy installation
- Predefined and certified function blocks for easy programming
- LED display and status LEDs for advanced diagnostics
- System status on DeviceNet for easy troubleshooting and predictive maintenance
- Easy scalability through the addition of DeviceNet safety devices
![Programmable Safety Device](img/Safety/NX_Safety_tcm849-97466.jpg)

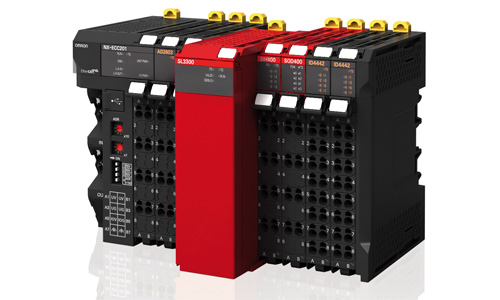

NX-S Integrated Safety Automation
Complex safety challenges are simplified with NX safety control. Learn more about achieving the highest level of productivity and flexibility without compromising safety.
- The safety controller meets Category 4, PLe according to the EN ISO 13849-1 and SIL3 according to the IEC 61508
- Up to 8 safety input points per unit
- Safety Function Blocks conforming with IEC 61131-3 standard programming
- PLCopen Function Blocks for safety Integration in one software, Sysmac Studio
Safety Switches & Operator Controls
![Safety Limit Switch](img/Safety/D4F_tcm849-101938.jpg)

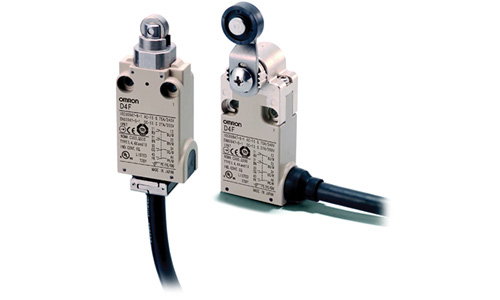

D4F Safety Limit Switch
The D4F-family is a slim-size line-up of safety limit switches. They are available with 2 or 4 built-in contacts. For easy set up, installation and maintenance, pre-wired versions with various cable length are provided.
- Slim-size housing
- Direct opening mechanism
- Roller or plunger actuators
- Pre-wired versions
![Safety Limit Switch](img/Safety/A22TK_tcm849-101919.jpg)

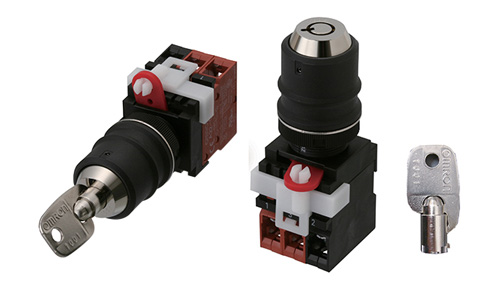

A22TK Safety Switch
- Selector Switch for secure equipment activation during maintenance.
- 30 types of exclusive keys make it more difficult to disable.
- The trapped key of the D4JL Guard Lock Safety-door Switch has the same shape as the locking key of the D4SL-SK10-LK Slide Key Unit. Units can be combined to improve safety. (Specify the same key type.)
- Common to the switch part of Emergency Stop Switch A22E. (Non-lighted model only)
![Safety Limit Switch](img/Safety/Touchstart_tcm849-101974.jpg)

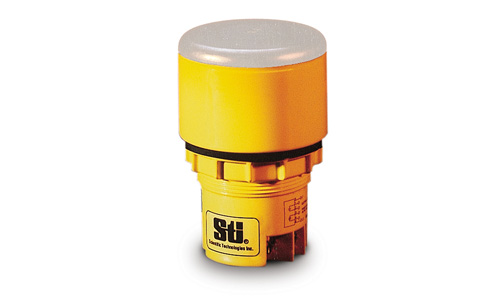

Touch Start Palm Button
The TouchStart is an ergonomic alternative to a mechanical palm button switch.
- No physical pressure required to actuate switch which reduces the likelihood of wrist injury caused by repetitive motion.
- Excellent sensitivity
- RFI Immunity
- AC version is UL recognized
